Wheter you need a pump for boiler feed, process water, municipal water supply or a heavy industrial application, with our numerous configuration options we always make a pump that meets your expectations and requirements.
Drive
• Open/closed loop
• Variable frequency drive Nastec
• Variable frequency drive DPVar Eco
• Variable frequency drive DPVar
Motor connection
• Motor stool
• Close coupled
• Customer-specific solutions
Hydraulics
• Stainless steel AISI 304 / 316
• 1 up to 30 stages
• Pressure class PN 16, 25, 40
• Low NPSH
• Elektrolytically polished
• Silicone free
Electric motor
• 50 or 60 Hz
• 1 x 230V or 3 x 400V, other voltages
• 2- or 4-pole
• Standard high efficiency DP motor
• Motor of choice of external supplier
• IE3 or IE4/IE5 versions
• Explosion proof
• IP 55 or IP 56 (optional)
• Marine approved or for extreme conditions

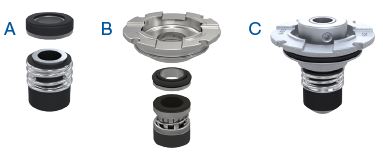

Mechanical seal
A Fixed seal
B Easy access seal
C Cartridge seal
Available in 19 different material combinations.
Base plate
• Premium powder-coated vast iron
• Stainless steel AISI 304

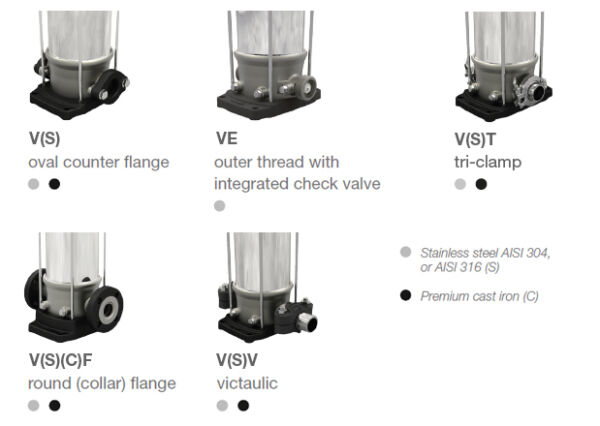

Pump casing and connection
• Pressure class: PN 16, 25, 40
• Stainless steel AISI 304 / 316, cast iron
• DIN, JIS, ASME
Private label
In addition to the 3 million “standard” pump options we offer many special configurations on demand. For example; private label with custom article number, custom colour / manual / packaging.
