Dimensional product information

BIM-objects and dimensional drawings

Two online databases give you direct access to all the technical specifications and dimensional drawings of our pumps and pump systems.

The files contain up-to-date graphic and parametric product information and can be downloaded for free for direct use.

Stainless steel booster systems

Visit the online database to find the information on our booster systems:

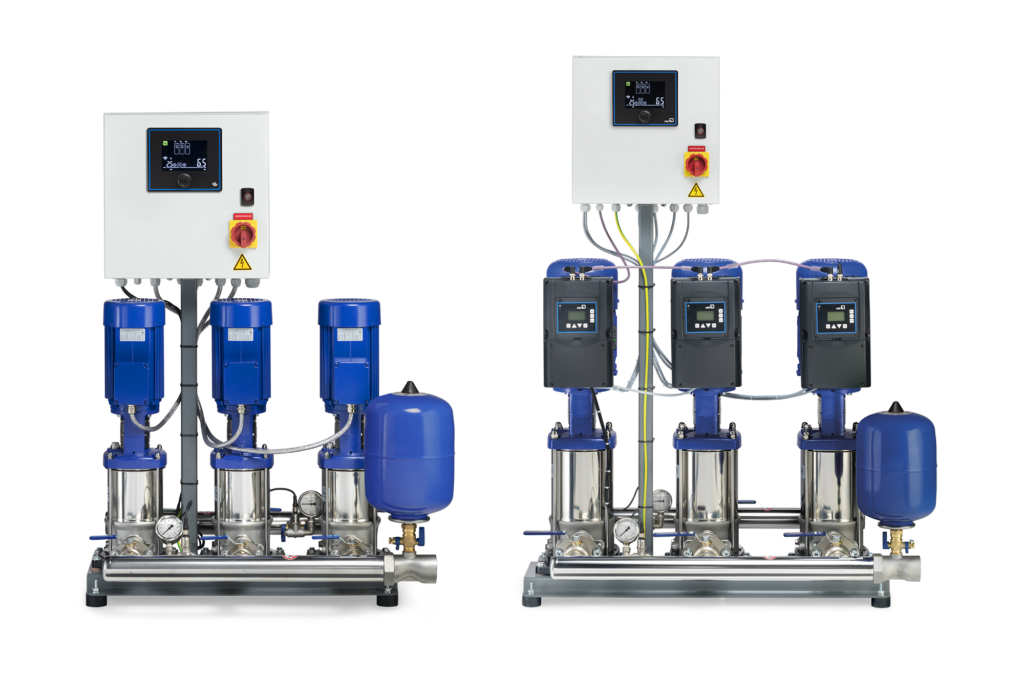

  • Hydro-Unit Single Line

  • Hydro-Unit Premium Line

  • Hydro-Unit Utility Line

  • Hydro-Unit Base Line

  • Hydro-Unit Cube

BIM objects

The Revit-families and 3D-components of our booster systems can be downloaded from the online portal of MEPcontent.

The files are available in .rfa , ifc and .dwg and have links to the complete technical data and pump curves of the systems

Stainless steel pumps

3D-elements, dimensional drawings, specifications and pump curves

All technical specifications of our stainless steel centrifugal pumps are available in an online database.

The DP-Pumps part community gives you direct access to 2D en 3D drawings of nearly every pump configuration we can produce.

After selecting the right configuration you can download the files directly.

  • PDF Datasheet with the dimensional drawings and technical specifications
  • CAD file
  • 2D of 3D view of the pump

Consult the database to find detailed information on:

  • DPV vertical pump

  • DPHSI horizontal pump

  • DPHM compact horizontal pump

  • DPVCI submersible pump
